Solid State Portable Receiver 6000

Sanwa

Data
Forum
Pictures
Collections

  • Manufacturer / Brand
  • Sanwa
  • Year
  • 1972 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 274994

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage

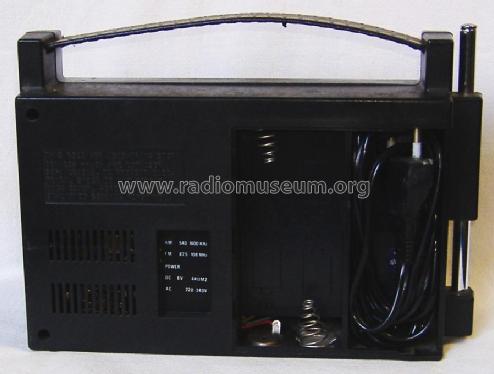

  • Line / Batteries (any type) / 220 / LR14: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Solid State Portable Receiver 6000 - Sanwa
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 220 x 155 x 70 mm / 8.7 x 6.1 x 2.8 inch
  • Notes

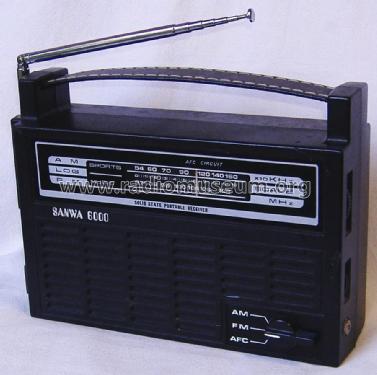

  • AM /FM Reisegerät, dreh- und schwenkbare 68cm Teleskopantenne links, Leder-Tragegriff oben, Dreh-Bereichschalter/AFC auf Front und Abstimmung, Lautstärke sowie 3,5mm Ohrhöreranschluss rechts.

    Empfangsbereiche:
    FM: 87,5 - 108MHz,
    AM: 540 - 1600kHz.

  • Net weight (2.2 lb = 1 kg)
  • 0.780 kg / 1 lb 11.5 oz (1.718 lb)
  • Author
  • Model page created by Holger Struthoff. See "Data change" for further contributors.
