- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1970 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 240647
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 4GK5 9M-HH3 6CB6A 6CB6A 6DK6 6CB6A 9A8 9A8 9M-P12 12BY7A 12BH7A 12BH7A 18R-AL1 25B-B14 30AE3 1X2B 310DB4
- Number of Transistors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 12-P7S - Sanyo Electric Co. Ltd.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
VHF: Canales 2 al 13.
- Mentioned in

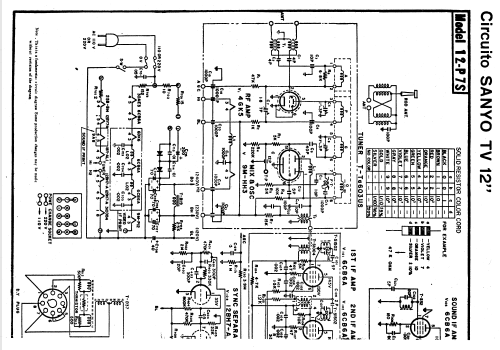

- -- Schematic
- Author
- Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
