- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1963 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 268371
- Number of Tubes
- 16
- Valves / Tubes
- 4GK5 9M-HH3 6AU6 6CB6 16A8 6CB6 6CB6 6DK6 12BY7 12BH7 20EW7 12BH7 25B-B14 1S2 30AE3 19AQP4
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org

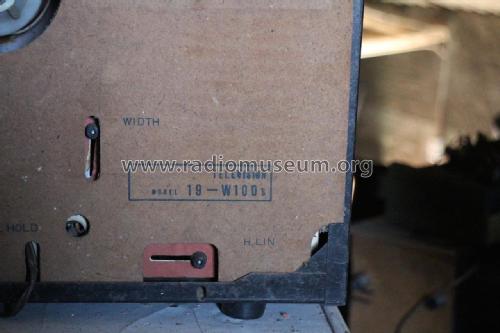

- Model: 19-W100s - Sanyo Electric Co. Ltd.;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 580 x 400 x 350 mm / 22.8 x 15.7 x 13.8 inch
- Notes
-
Only VHF
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
