• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1974 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261127

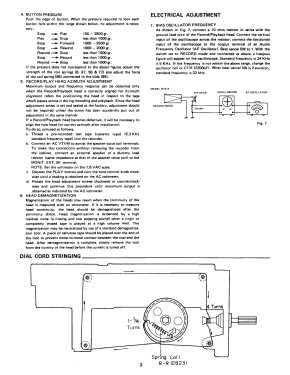

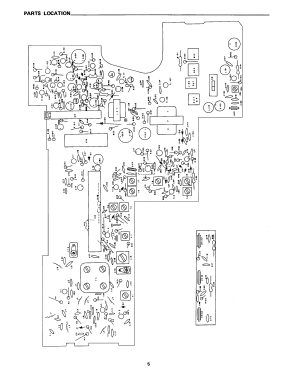

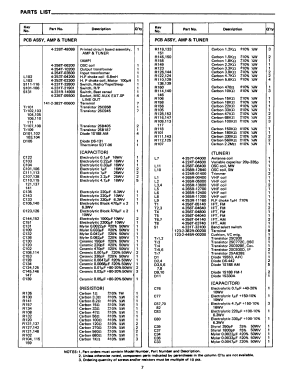

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors
• 2SC930 2SC930 2SC772 2SC929 2SC930 2SC930 2SA628 2SC858 2SC945 2SC945 2SC945 2SC945 2SC945 2SC945 2SC945 2SB405 2SB405 2SB187 1S188 1S330 1S553 DS442

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 120; 200; 240 / D: 4 x 1.5 / 6 V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 3-Band Portable Radio Cassette Recorder M-2414N - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 328 x 200 x 84 mm / 12.9 x 7.9 x 3.3 inch

• Net weight (2.2 lb = 1 kg)
• 6.6 lb (6 lb 9.6 oz) / 2.996 kg

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
