• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1975–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 341147

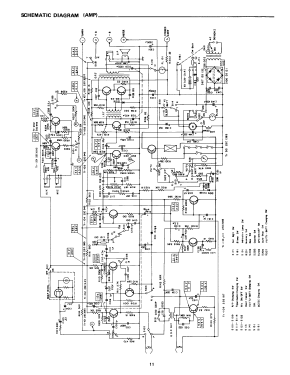

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors
• 2SC930 2SC930 2SC930 2SC929 2SC930 2SC930 2SC930 2SC693 2SC693 2SC945 2SC945 2SC945 2SC945 2SC945 2SD325 2SD325 2SB187 2SC945 2SC945 2SC945 2SC1383 DS131 DS132 DS442 MA26 1S188 1S330 1S553

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 120; 200; 240 / 6 / C: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm

• Power out
• 1.6 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

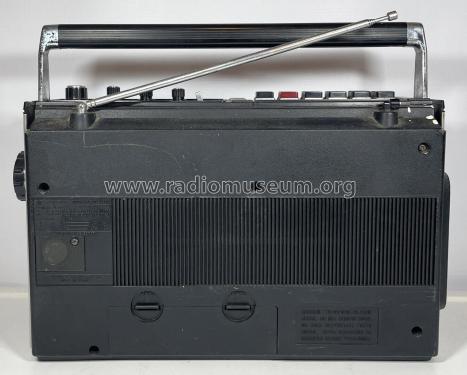

• Model: 3-Band Portable Radio Cassette Recorder M-2468N - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 330 x 194 x 90 mm / 13 x 7.6 x 3.5 inch

• Notes

• AM/FM/SW 3-band, memory, separate bass and treble, sleep timer.

• Net weight (2.2 lb = 1 kg)
• 7 lb 0 oz (7 lb) / 3.178 kg

• Price in first year of sale
• 129.00 AUS $

• Mentioned in
• Mingay's Price Service (Aug 1976 to Feb 1978.)

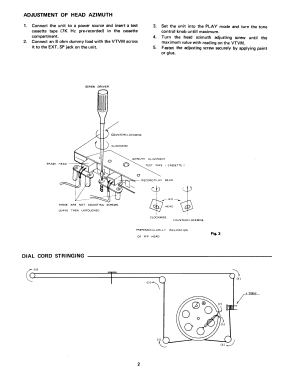

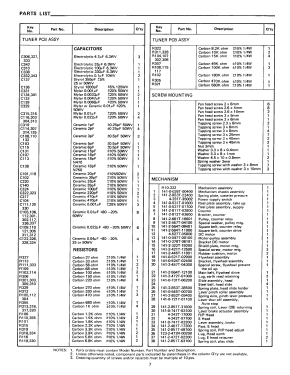

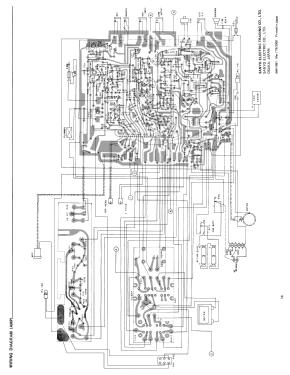

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
