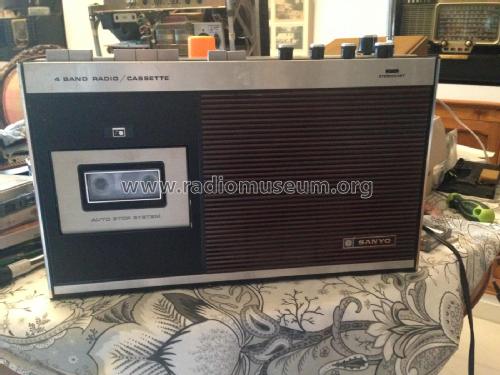

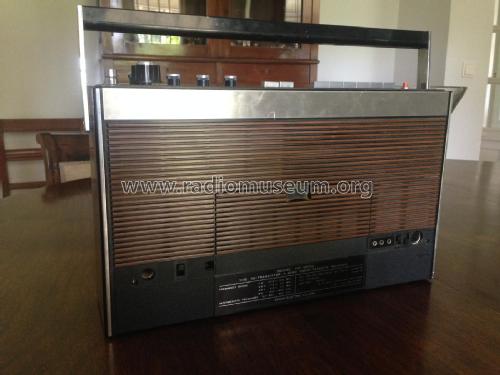

4 Band Radio-Cassette Recorder RP-8500A
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 237181
- Number of Transistors
- 13
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage

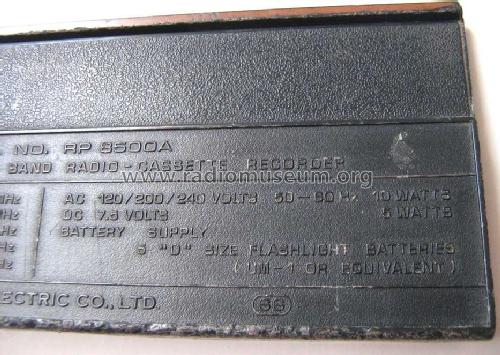

- Line plus power jack, mostly with battery or storage battery / 120; 200; 240 / D: 5 x 1,5 V / DC 7,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 4 Band Radio-Cassette Recorder RP-8500A - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-

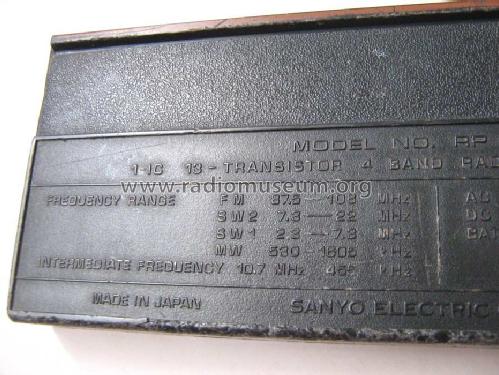

Frequency Range:
FM 87.5 - 108 MHz
SW2 7.3 - 22 MHz
SW1 2.3 - 7.3 MHz
MW 530 - 1605 KHz
- Author
- Model page created by Daniel Rosha. See "Data change" for further contributors.
