• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1973 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 342282

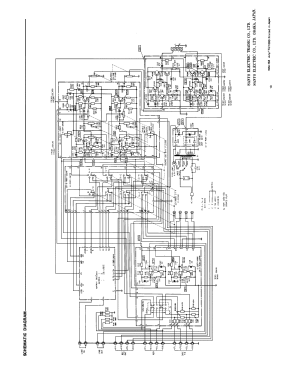

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors
• 2SC693 2SA532 2SD331 2SB515 2SC537 2SA608 2SK24 1S188 DS130 DS131 DS430 10D-5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 120; 200; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (50 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 4 Channel Decoder-Amplifier DCA-1600X - Sanyo Electric Co. Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 11.75 x 4.25 x 10 inch / 298 x 108 x 254 mm

• Notes

• Input: Sensitiviy/impedance

  • Line    : 150 mV/100 kΩ
  • Aux     : 150 mV/50 kΩ
  • Tape   : 150 mV/50 kΩ

  Each semiconductor type listed once

• Net weight (2.2 lb = 1 kg)
• 7 lb 0 oz (7 lb) / 3.178 kg

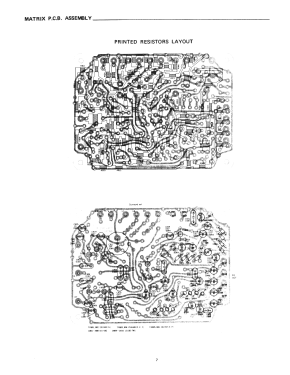

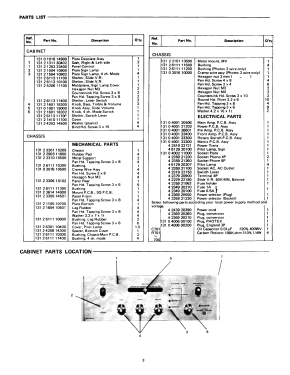

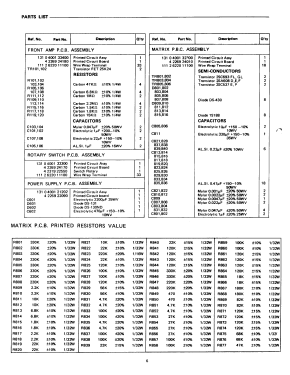

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
