4 Channel Stereo Receiver DCX-3100K

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1975 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 352989

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 31
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 50/60 Hz, 120; 200; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 46 W (60 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 4 Channel Stereo Receiver DCX-3100K - Sanyo Electric Co. Ltd.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 494 x 130 x 351 mm / 19.4 x 5.1 x 13.8 inch
  • Notes

  • It has the same receiver as the DCX3000K model

    Each semiconductor type listed once

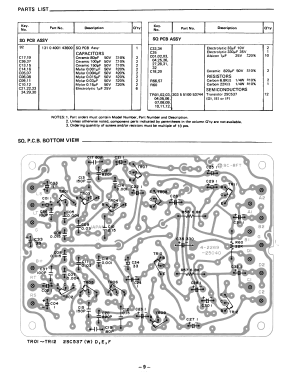

    The uploaded manual is missing the main schematic and the board to board wiring. If you upload it remember to delete this note

  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)

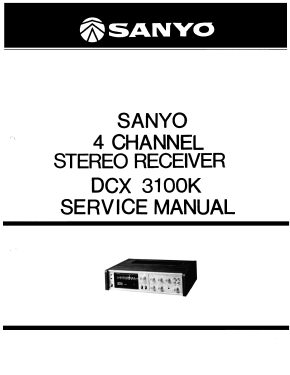

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
