4 Channel Stereo Receiver DCX-3300K

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1973 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 353000

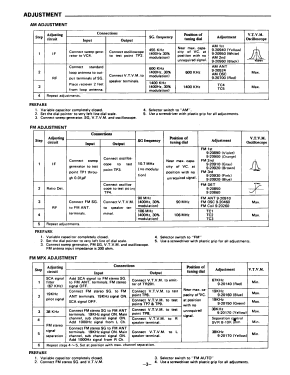

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 35
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 200; 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 4 Channel Stereo Receiver DCX-3300K - Sanyo Electric Co. Ltd.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 530 x 150 x 390 mm / 20.9 x 5.9 x 15.4 inch
  • Notes

  • Input: Sensitiviy/impedance

    • Phono       : 5 mV/50 kΩ
    • Aux           : 120 mV/100 kΩ
    • Recorder  : 300 mV/100 kΩ (playback)
    • Mic           : 10 kΩ

    Mains USA version: 110-120 VAC

    Each semiconductor type listed once



  • Net weight (2.2 lb = 1 kg)
  • 10.9 kg / 24 lb 0.1 oz (24.009 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
