• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181984

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

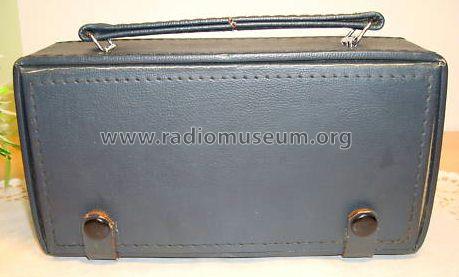

• Model: 7 Transistor 7L-706NE [French station scale] - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 205 x 110 x 65 mm / 8.1 x 4.3 x 2.6 inch

• Notes
• Sanyo 7L-706NE 2-Band, 7 Transistor; Most similar with model 7L-706N but with French radio stations labeled on the scale. Note also model with same type but British radio stations labeled on scale but model 7L-706

• Net weight (2.2 lb = 1 kg)
• 0.650 kg / 1 lb 6.9 oz (1.432 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 1756 models, 1584 with images and 472 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
