- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 217514
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage

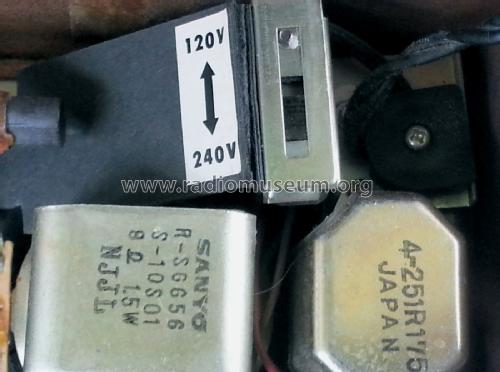

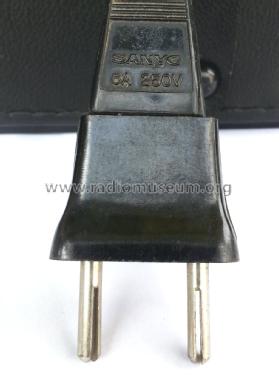

- Line / Batteries (any type) / 120; 240 / 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Material

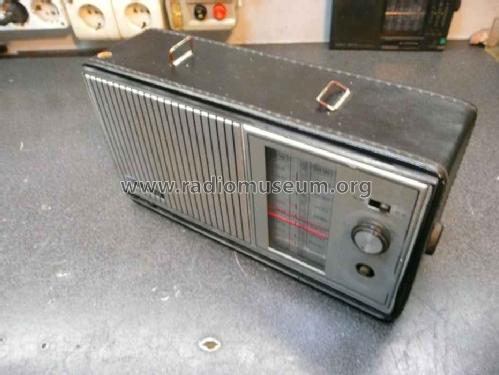

- Leather / canvas / plastic - over other material
- from Radiomuseum.org

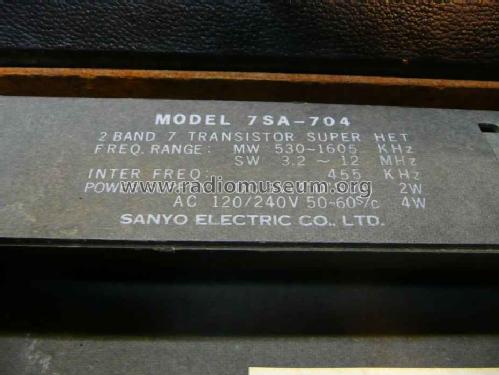

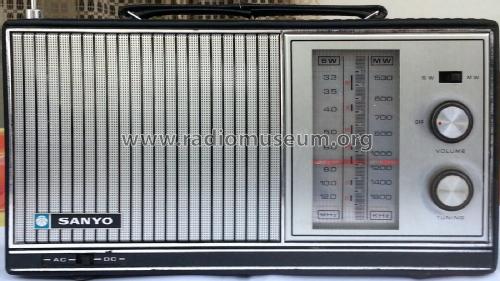

- Model: 7SA-704 - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 135 x 75 mm / 10.2 x 5.3 x 3 inch
- Notes

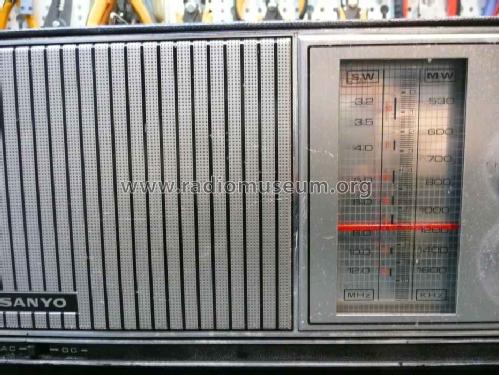

- MW 530-1605 kHz, SW 3.2 - 12 MHz. br />Headphone plug on the left side.
- Net weight (2.2 lb = 1 kg)
- 1.226 kg / 2 lb 11.2 oz (2.7 lb)
- Author
- Model page created by Petros Tsirvoulis. See "Data change" for further contributors.
