• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 257581

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA221 or. 2SA60 2SA222 or. 2SA58 2SA202 2SA203 2SB185 2SB187 2SB187 2SB187 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / C: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.25 W (0.35 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 8 Transistor 3 Band All Wave Deluxe 8U-P30 - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 234 x 125 x 52 mm / 9.2 x 4.9 x 2 inch

• Notes

• Frequency Range

  BC (MW): 535-1605 kHz
  SW1: 2.3 - 7.3 MHz
  SW2: 8 - 22 MHz

  Two Earphone jacks, Supplementary Ant. Outlet, Band switch, Tuning and Fine Tuning knobs, On-Off & Volume Control

• Net weight (2.2 lb = 1 kg)
• 0.850 kg / 1 lb 14 oz (1.872 lb)

• Mentioned in

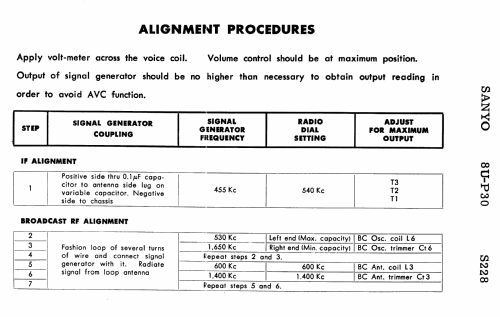

• -- Schematic

• Author
• Model page created by Daniel Rosha. See "Data change" for further contributors.
