• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 257580

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA222 2SA222 2SA322 2SA203 2SB185 2SB186 2SB22 2SB22 1S188

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / C: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 8 Transistor 3 Band Transcontinental All Wave Deluxe 8U-P35 - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• 8 Transistor, T/W portable, fixed carrying handle, built-in telescopic antenna, twin outlets for earphone and/or external speaker.

  This model sold in Australia during 1965 & 1966 for $71.40. Price includes batteries.

• Mentioned in
• Mingay's Price Service (Feb 1966.)

• Literature/Schematics (1)

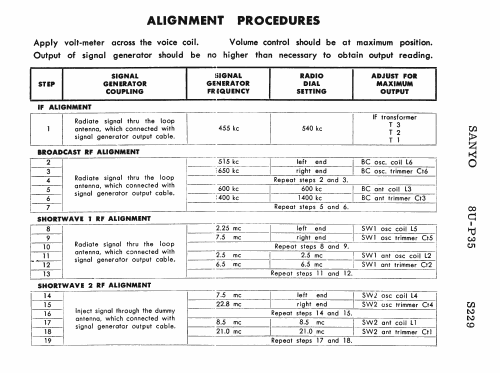

• J.R. Publications Transistor Radio Service Handbook (Group C2, 1965, Page S229.)

• Author
• Model page created by Daniel Rosha. See "Data change" for further contributors.
