• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1961–1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141320

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA93 2SA92 2SA202 2SA203 2SB185 2SB186 2SB187 2SB187

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

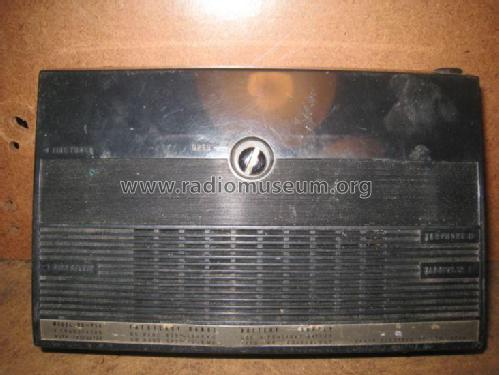

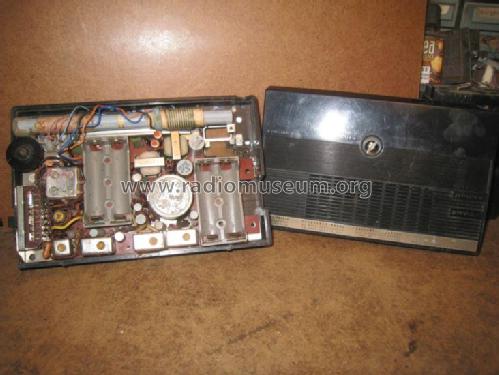

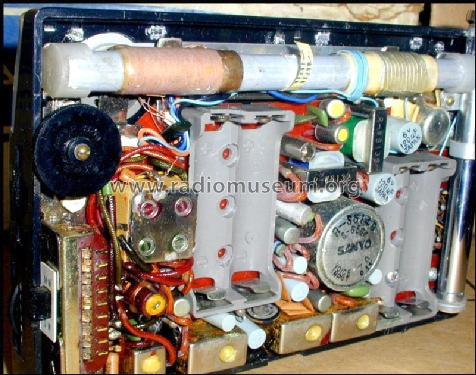

• Model: All Wave 8 Transistor 8S-P14 - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Sanyo 8S-P14;
  SW: 3.85 - 12.5 MHz, separate dial scale for meters display, indicator meter,
  earphones & ext. speaker jack, telescopic antenna + black leather case. Requires 4 x AA batteries.

  Marketed in Australia by Sanyo Sales & Service Co. between 1962-1964 & sold for £43/10/-, batteries included.

• Mentioned in
• Mingay's Price Service (Feb 1962 to Feb 1964.)

• Literature/Schematics (1)
• J.R. Publications Transistor Radio Service Handbook (Group C2, 1965, Page S222.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 1756 models, 1584 with images and 472 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
