• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164423

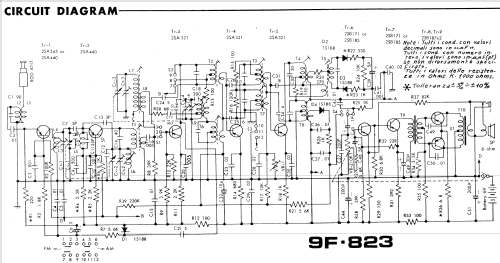

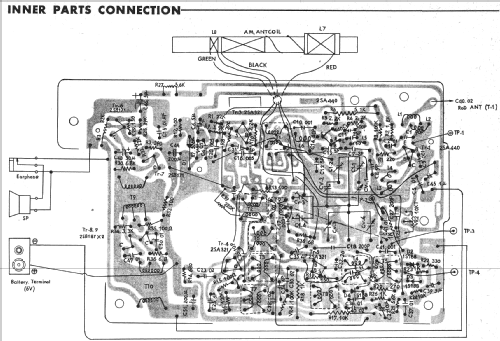

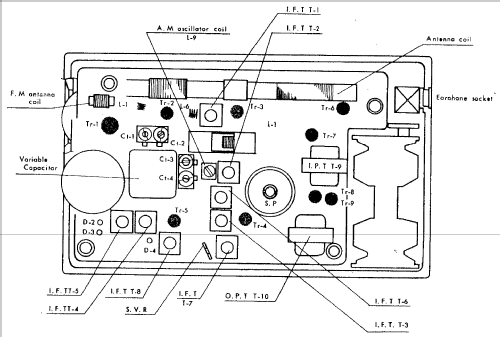

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA343 or. 2SA440 2SA440 2SA321 2SA321 2SA321 2SB171 or. 2SB185 2SB171 or. 2SB185 2SB187 2SB187 1S188 1S188 1S188 1S188

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 9 Transistor 9F-823 - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 158 x 94 x 38 mm / 6.2 x 3.7 x 1.5 inch

• Notes

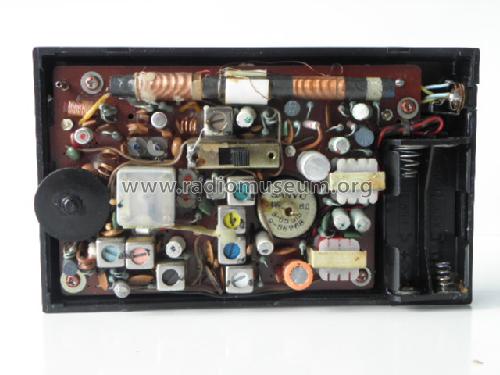

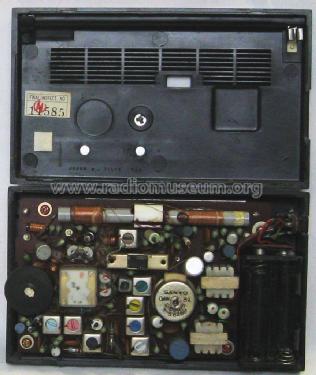

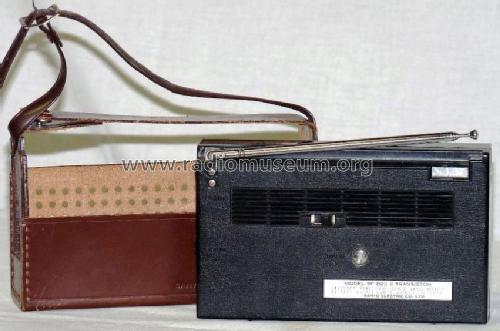

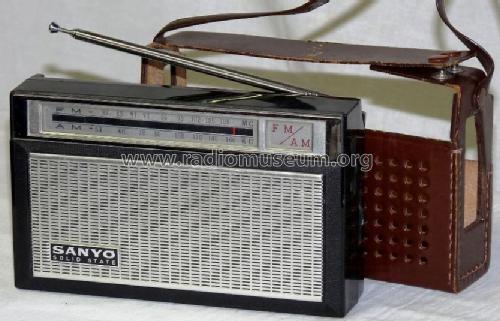

• AM/FM Portable (Ledertasche) Frequenzbereich: AM 530 - 1600 KHz, FM 87 - 108 MHz, Ohrhöreranschluß über Klinkenbuchse 3,5 mm,

• Net weight (2.2 lb = 1 kg)
• 0.450 kg / 0 lb 15.9 oz (0.991 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
