9 Transistor 9G-802
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 249770
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); Export model
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 9 Transistor 9G-802 - Sanyo Electric Co. Ltd.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 165 x 93 x 47 mm / 6.5 x 3.7 x 1.9 inch

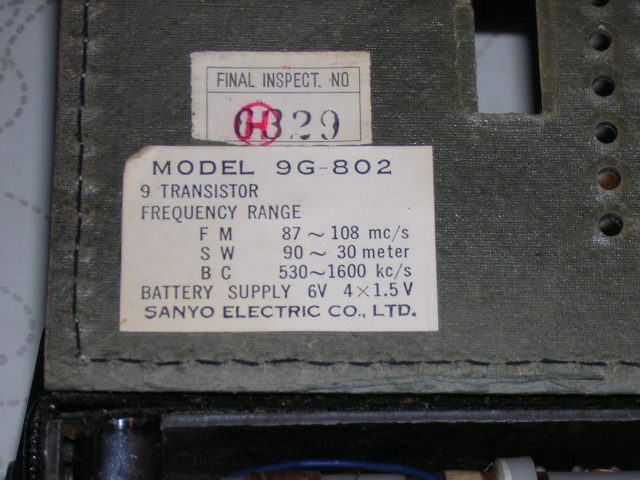

- Notes
-
Seiten und Rückdeckel mit Lederumhüllung,
3 Band Portable Reisegerät,
FM 87 - 108 MHz,
SW(KW) 31 - 90 Meter,
BC(MW) 530 - 1605 kHz.Teleskopantenne, innen Ferritstab, Ohrhörer/Kopfhörer Buchse 3,5 mm.
Siehe auch Sanyo 9G-802L mit FM/MW/LW Bereichen.
- Net weight (2.2 lb = 1 kg)
- 0.645 kg / 1 lb 6.7 oz (1.421 lb)
- Author
- Model page created by Lothar Ohm. See "Data change" for further contributors.
- Other Models
-
Here you find 1749 models, 1574 with images and 474 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Collections
The model 9 Transistor is part of the collections of the following members.
Forum contributions about this model: Sanyo Electric Co.: 9 Transistor 9G-802
Threads: 1 | Posts: 2
Hallo Radiofreunde,
ich suche für mein Sanyo Modell Typ 9G-802 , Schaltplan ,wenn möglich auch das Manual !
Gerne nehme ich Kontaktadressen an.
Mit freundlichen Grüßen
Lothar Ohm
Attachments
- Sanyo Modell 9G-802 (67 KB)
- Sanyo Modell 9G-802 (64 KB)
Lothar Ohm, 19.Mar.14
