All Transistor Tape Recorder MR-530 (Japan 704)
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1966 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 340072
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 50-60 Hz, 110-117; 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (2.5 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: All Transistor Tape Recorder MR-530 - Sanyo Electric Co. Ltd.;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 12 x 5.25 x 9 inch / 305 x 133 x 229 mm
- Notes
-

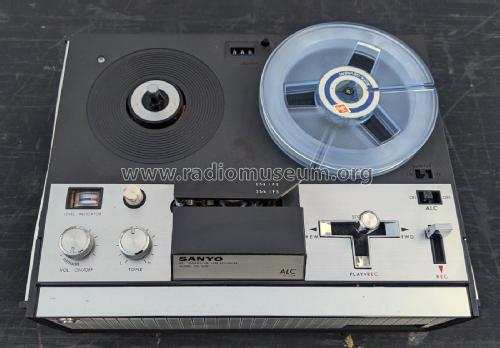

AC-operated reel-to-reel, 2-speed tape recorder with ALC recording.
Made in Japan 704
- Net weight (2.2 lb = 1 kg)
- 7.438 lb (7 lb 7 oz) / 3.377 kg
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Keith Ellison. See "Data change" for further contributors.
