• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 257391

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2SA60 2SA49 2SA53 2SB54 2SB54 2SB56 2SB56 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.08 W (0.14 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

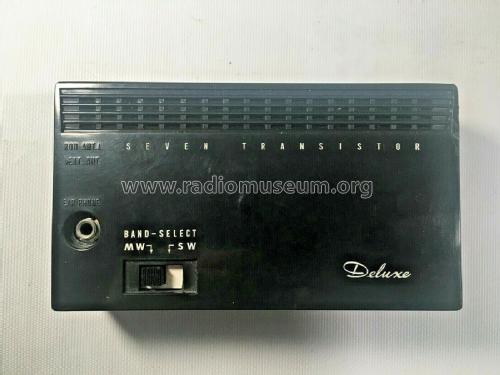

• Model: All Wave Transistor Seven Deluxe 7S-P5 - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 115 x 66 x 32 mm / 4.5 x 2.6 x 1.3 inch

• Notes

• Frequency Range

  MW: 540 - 1600 kHz

  SW: 3.9 - 12 MHz

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Daniel Rosha. See "Data change" for further contributors.
