AM/FM 2Band Portable Radio RP5230

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1982 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 352988

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 120; 210; 240 or AA: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
  • Power out
  • 0.3 W (0.5 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AM/FM 2Band Portable Radio RP5230 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 202 x 127 x 52 mm / 8 x 5 x 2 inch
  • Notes

  • FM 88 - 108 MHz;  AM 525 - 1615 kHz.

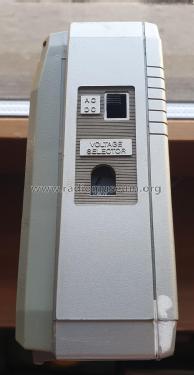

    Right side: wheels for tuning and on/off - volume; left side: AC - DC switch, voltage selector; Rear: FM/AM switch and earphone socket. Built-in electrical cable.

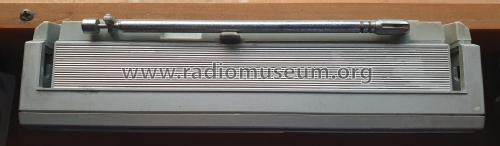

    Ferrite cm. 6; external telescopic antenna, 5 sections, 47.5 cm. Movable handle backwards only.


  • Net weight (2.2 lb = 1 kg)
  • 0.730 kg / 1 lb 9.7 oz (1.608 lb)
  • Author
  • Model page created by Felice Nicolini. See "Data change" for further contributors.
