• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1981 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 332598

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors
• 2SC930 2SC930 2SC930 2SC930 2SC930 2SA702 2SA702 2SA640 2SA640 2SA640 2SA953 2SC2002 2SC2002 2SA953 2SD743 2SB703 LA1230 LA3350 RC4558 DS442 RD13EB3 1N60 1SS53 1N4002

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: AM/FM Stereo Receiver 2016 - Sanyo Electric Co. Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 140 x 280 mm / 17.3 x 5.5 x 11 inch

• Notes
• • Power: 2 x 20 W into 8 Ω, 2 x 40 W into 4 Ω – stereo
  • Tuning range FM 88-108 MHz , does not require reprogramming
  • Bandwidth – 20 Hz–40 kHz
  • Total harmonic distortion: 0.04 %
  • Input sensitivity: 2,5 mV (MM), 150 mV (line)
  • Signal to noise ratio: 75 dB (MM), 95 dB (line)



• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

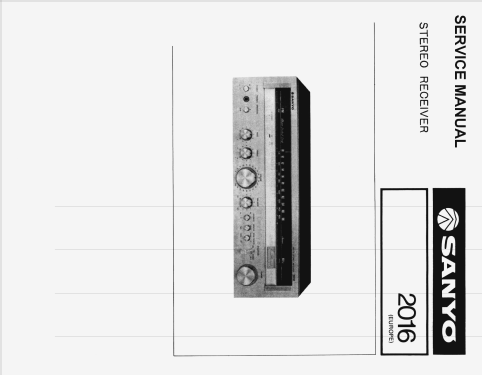

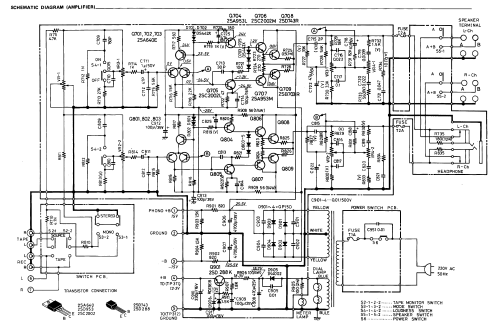

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
