Calata 9F-820
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 306847
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / AA: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Power out
- 0.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Calata 9F-820 - Sanyo Electric Co. Ltd.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 140 x 85 x 40 mm / 5.5 x 3.3 x 1.6 inch
- Notes
-

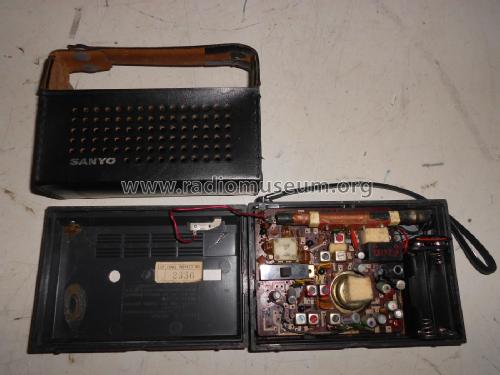

controllo volume - antenna telescopica esterna - presa per auricolare - antenna interna in ferrite - commutatore AM/FM - custodia in similpelle - maniglia di trasporto - frequency range: AM 503/1605 kHz - FM 88/108 MHz.
- Net weight (2.2 lb = 1 kg)
- 0.450 kg / 0 lb 15.9 oz (0.991 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
