Cassette Recorder M-88

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1968–1970
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 175227

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / C: 5 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Recorder M-88 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 123 x 60 x 227 mm / 4.8 x 2.4 x 8.9 inch
  • Notes

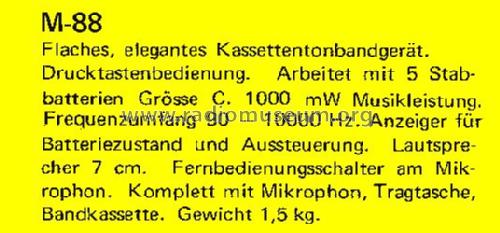

  • Sanyo M88 Tape Recorder

    A cassette recorder with pushbutton control, complete with microphone and stand, patch cord, earphones and leather carrying case with shoulder strap.

    Feature: solid-state circuitry uses eight transistors and one diode. Combined battery condition and and recording level indicator. Remote control switch on microphone. (MINGAY'S PRICE SERVICE)

    Frequency response: 90 - 10,000 Hz.

  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Price in first year of sale
  • 86.00 AUS $
  • Literature/Schematics (1)
  • Service Manual.
  • Author
  • Model page created by Holger Ortmann. See "Data change" for further contributors.
