Cassette Tape Deck RD 4300

• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1975 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 240481

• Picture

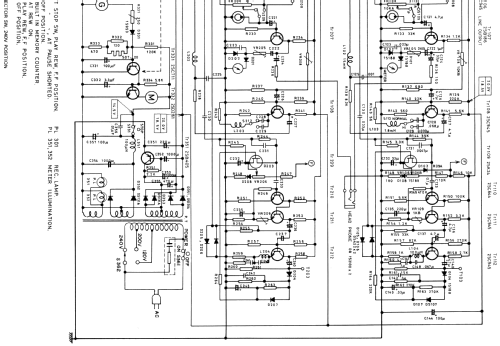

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 30

• Semiconductors
• 2SC644 2SC644 2SC644 2SC945 2SC945 2SC495 2SB186 2SC945 2SK24 2SC644 2SC945 2SC945 2SC644 2SC644 2SC644 2SC945 2SC945 2SC495 2SB186 2SC945 2SK24 2SC644 2SC945 2SC945 2SB187 2SC945 2SB474 2SC711 2SD261 2SB405 1S188

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 120; 200; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Cassette Tape Deck RD 4300 - Sanyo Electric Co. Ltd.;

• Shape
• Book-shelf unit.

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
