• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1977 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 281913

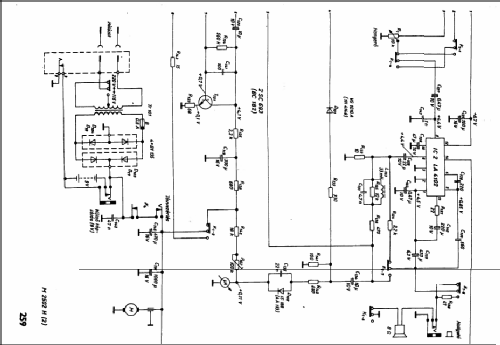

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage

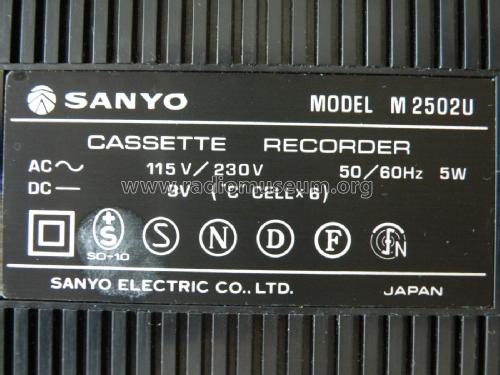

• Line / Batteries (any type) / 115; 230 / C: 6 x 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cassette Tape Recorder M2502U - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 77 x 296 mm / 8.9 x 3 x 11.7 inch

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Literature/Schematics (2)
• Magnósok Évkönyve, Budapest, 1980.

• Literature/Schematics (4)
• Magnósok Évkönyve, 1980.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
