• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1975/1976

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 263334

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• LA3201 LA4101 DS-17 WG1010A

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 120; 200; 240 / 7.5 / C: 5 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.8 W (0.85 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Portable Cassette Tape Recorder M-2519 - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 135 x 70 mm / 10.2 x 5.3 x 2.8 inch

• Notes

• Portable AC/battery, push-button, inbuilt microphone, carry case.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Price in first year of sale
• 45.00 AUS $

• Mentioned in
• Mingay's Price Service (Aug 1975 & Feb 1976.)

• Literature/Schematics (1)

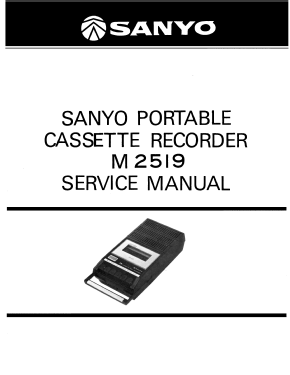

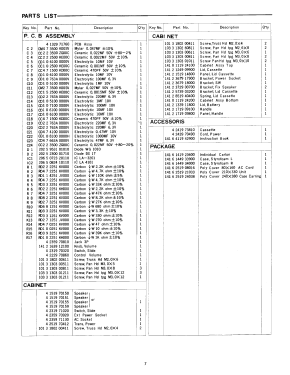

• -- Original-techn. papers.
