Compo System C 40

• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1985 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159037

• Picture

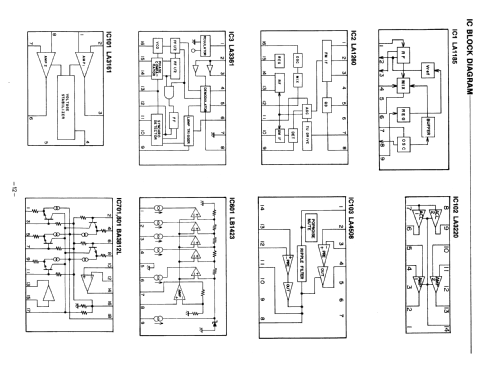

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 115/230; 8 x 1,5 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Compo System C 40 - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 644 x 261 x 200 mm / 25.4 x 10.3 x 7.9 inch

• Notes
• 4-Band Stereo-Compo System mit 5-fach Equalizer und Cassetten-Doppeldeck.
  2 x 6 Watt Ausgangsleistung, 5-teilige LED-Pegelanzeige.
  Doppel-Cassettenlaufwerk mit Tipptastensteuerung, Dolby B, Bandzählwerk, Reineisen tauglich.
  2 abnehmbare Zweiweg-LS-Boxen.

• Net weight (2.2 lb = 1 kg)
• 7.9 kg / 17 lb 6.4 oz (17.401 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
