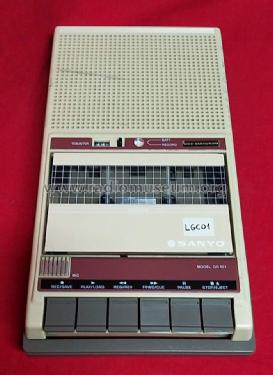

Data Cassette Tape Recorder DR101
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1983 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 240072
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / 4 x 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Data Cassette Tape Recorder DR101 - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 500 x 140 mm / 10.6 x 19.7 x 5.5 inch
- Notes
-
Built-in f.f./rew switch. Speaker monitor at leading and saving. 2-way LED indicator. Phase shift switch. Mode switch for audio or data recording. Built-in electret microphone. Tape counter.
- Net weight (2.2 lb = 1 kg)
- 0.925 kg / 2 lb 0.6 oz (2.037 lb)
- Author
- Model page created by José Pinto. See "Data change" for further contributors.
