• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 238765

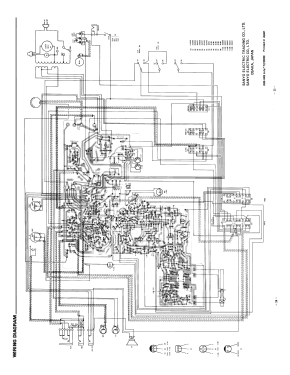

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• 2SC668 2SC930 2SA101 2SA628 2SC537 2SC858 2SC537 2SC537 2SC537 2SC537 2SB405 2SB405 2SB185 LA1201 1S188 1S553 10DC-1 DS410_Diode

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio Cassette Recorder with Digital Clock M-5400F /F-Canada /FE / FG - Sanyo Electric Co. Ltd.;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 328 x 175 x 120 mm / 12.9 x 6.9 x 4.7 inch

• Notes

• AC Mains changes:

  • M-5400F: 120-200-240V / 50Hz
  • M-5400F-Canada: 120V/60Hz
  • M-5400FE: 220V/50Hz
  • M-5400FG: 240V/50Hz

  Elliptical loudspeaker 4" x 2-½"

• Net weight (2.2 lb = 1 kg)
• 6 lb 7 oz (6.438 lb) / 2.923 kg
