- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1970 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 308082
- Number of Transistors
- 8
- Semiconductors
- 2SA223 2SA223 2SA322 2SA322 2SC537 2SC537 2SB474 2SB474 1S188 1S188 1S953 unknown_diode
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 & 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: F-8010 - Sanyo Electric Co. Ltd.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 6.715 x 1.75 x 5.5 inch / 171 x 44 x 140 mm
- Notes
-

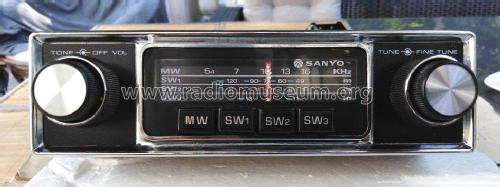

Broadcast and three shortwave Bands car radio.
6 and 12 Volts with dual-polarity.
Bands:
MW: 540-1605KHz
SW1: 2.5-6.1MHz
SW2: 7.3-18.7MHz
SW3: 23.1-27.2MHz.
- Net weight (2.2 lb = 1 kg)
- 2 lb 8 oz (2.5 lb) / 1.135 kg
- Literature/Schematics (1)
- J.R. Publications Car Radio Service Handbook (Group G8, 1974, Page S102.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
