- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1970 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 302360
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 4 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

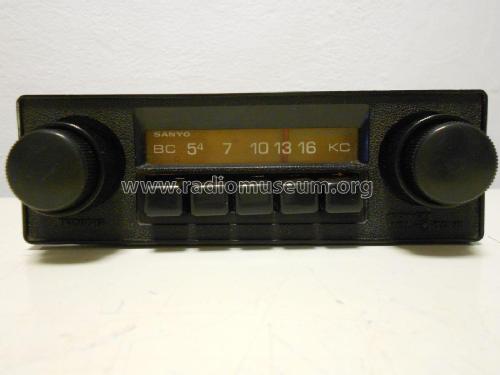

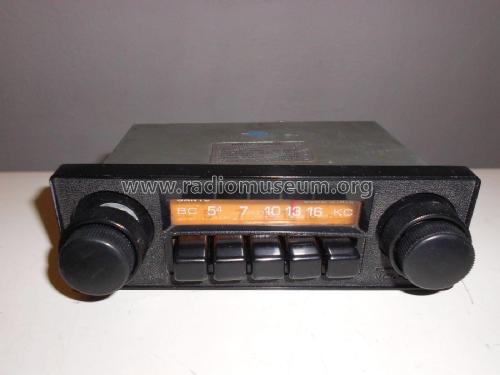

- Model: F-8222A - Sanyo Electric Co. Ltd.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 150 x 43 x 110 mm / 5.9 x 1.7 x 4.3 inch
- Notes
-
controllo volume/tono - 5 tasti di preselezione stazioni radio - gamma di frequenza: 535/1605 kHz - negativo a massa -
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Mentioned in
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
