• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1988 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 331013

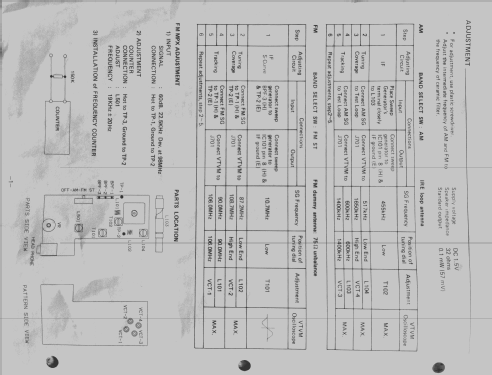

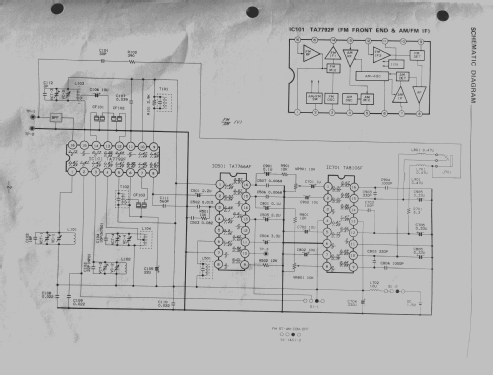

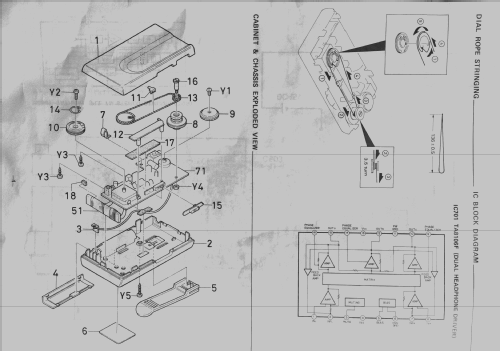

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• TA7792 TA7766 TA8106

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / AAA 1.5 Volt

• Loudspeaker
• - only for Earphone!

• Power out
• 0.016 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM Stereo/AM Radio RP42 - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 48 x 87 x 17 mm / 1.9 x 3.4 x 0.7 inch

• Notes

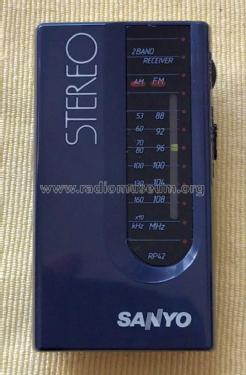

• The Sanyo RP42 FM Stereo/AM Radio is a ultra-compact, ultra-light design for portable use, equiped with belt-clip and running on a single AAA battery. It was supplied with stereo headphones.

  There are at least three model variants with the following Product Codes:

  • 123 288 03 (Gray/Canada)
  • 123 288 06 (Gray/UK)
  • 123 288 07 (Red/UK)

  Specifications
  Frequency Range

  • AM: 525-1615kHz (Canada), 525-1605kHz (U.K.)
  • FM: 88-108MHz (Canada), 87.5-108MHz (U.K.)

  Audio output

  • Phones impedance: 32 Ohm
  • Power: 16mW+16mW (Max.)

  Sensitivity

  • AM: 280uV/m
  • FM: 2uV





• Net weight (2.2 lb = 1 kg)
• 0.047 kg / 0 lb 1.7 oz (0.104 lb)

• Author
• Model page created by Jose Mesquita. See "Data change" for further contributors.

• Other Models

• Here you find 1741 models, 1566 with images and 473 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
