FM-SW-MW 3 Band Auto Play Portable Radio Cassette Recorder M-2470N
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1975/1976
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 261122

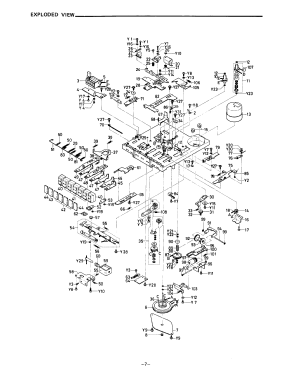

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 21
- Semiconductors
- 2SC930 2SC930 2SC668 2SC930 2SC930 2SC930 2SC930 2SC929 2SA628 2SC644 2SC945 2SC945 2SC945 2SC945 2SC644 2SB187 2SC536 2SC945 2SC945 2SD359 2SD359 DS131 DS132 DS442 MA26 1S188 1S330 1S553
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 120; 200; 240 / 6 / D: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FM-SW-MW 3 Band Auto Play Portable Radio Cassette Recorder M-2470N - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 387 x 227 x 93 mm / 15.2 x 8.9 x 3.7 inch
- Notes
-
Pushbutton, AC/battery, car, mixing memory and auto play, review, pause, AFC.
Frequency range:
- AM: 530 - 1605 kHz
- FM: 88 - 108 MHz
- SW: 3.2 - 12 MHz
Elliptical speaker: 4" x 6"
See also N-2470NM (with SW band: 6 - 18 MHz)
- Net weight (2.2 lb = 1 kg)
- 8 lb 0 oz (8 lb) / 3.632 kg
- Price in first year of sale
- 189.00 AUS $
- Mentioned in
- Mingay's Price Service (Aug 1975 to Aug 1976.)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
