- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1974 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 327749

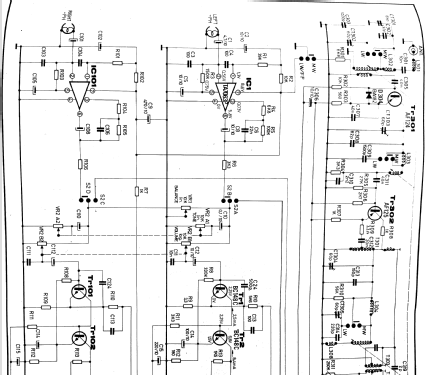

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- AF124 AF125 AF126 BC148C BC148C BC148C BC148C 2SC1096 2SC1096 2SC1096 2SC1096 TA7063P TA7063P AA119 BA182
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: FT-4021 - Sanyo Electric Co. Ltd.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 7.125 x 2 x 5.125 inch / 181 x 51 x 130 mm
- Notes
-
Transistors for both channels are assumed to be identical.
- Net weight (2.2 lb = 1 kg)
- 3 lb 11 oz (3.688 lb) / 1.674 kg
- Price in first year of sale
- 21,800.00 yen
- Mentioned in
- Esquemario de Magnetófonos y cassettes III 1976
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
