HI-FI Stereo Music System DXT-5502LU

• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1976 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 353120

• Picture

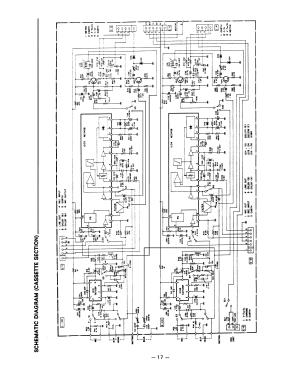

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors
• 2SK41 2SK55 or. 2SK19 2SC1771 2SC536 2SC693 2SC1571 2SC381 2SC785 2SD330 TA7129 NE545 HA1137 LA3350 HA1151 STK-014 1S188 DS442 DS130 DS131 DS132

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage

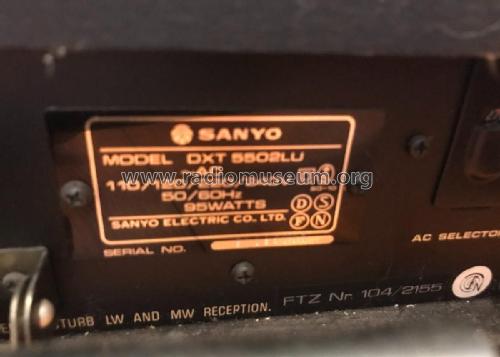

• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (undistorted)

• Material
• Various materials

• from Radiomuseum.org
• Model: HI-FI Stereo Music System DXT-5502LU - Sanyo Electric Co. Ltd.;

• Shape
• Tablemodel, low profile (big size).

• Notes

• Sanyo Model DXT-5502LU

    Solid state Hi-Fi 4-channel music system with a 3-band tuner.
    Features: AM/LW/FM tuner. Belt-driven, aluminium diecast 11" turntable, auto return tone arm, moving magnetic cartridge with diamond stylus type ST-28D. Cassette stereo with Dolby System.

  Each semiconductor type listed once

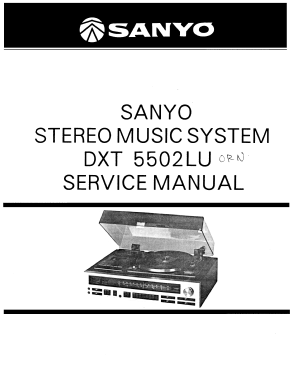

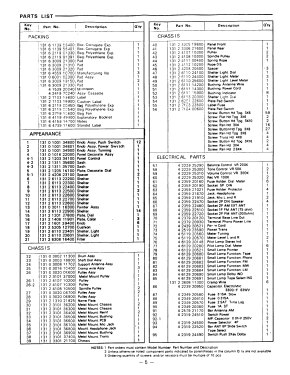

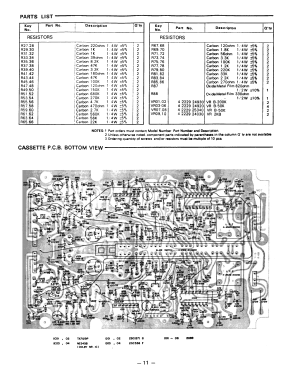

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
