M4100LU

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 158506

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 115; 230/ 6 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: M4100LU - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 420 x 250 x 110 mm / 16.5 x 9.8 x 4.3 inch
  • Notes

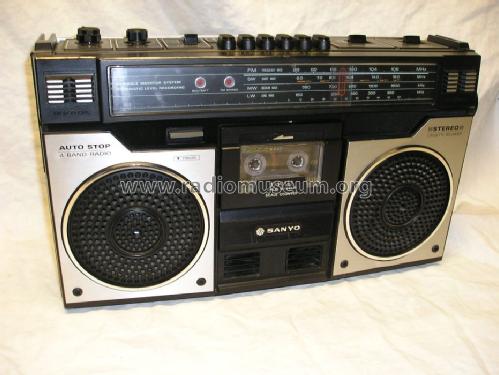

  • Sanyo M4100LU 4 Band Radio Cassette Recorder Stereo;
    FM: 87.5 - 108 MHz,
    MW: 525 - 1605 KHz,
    SW: 6 - 18 MHz,
    LW: 150 - 350 KHz,
    Dual R + L volume control, tone control, mono/stereo select, Auto-Stop, two microphones, FM stereo LED indicator, Rec./batt. LED indicator, Variable Monitor System, Automatic Level Recording, 11 W mains power consumption.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
