• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116900

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 110-127; 220-240 / 9 / D: 6 x 1.5 Volt

• Loudspeaker
• 4 Loudspeakers / Ø 12 cm = 4.7 inch

• Power out
• 4 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

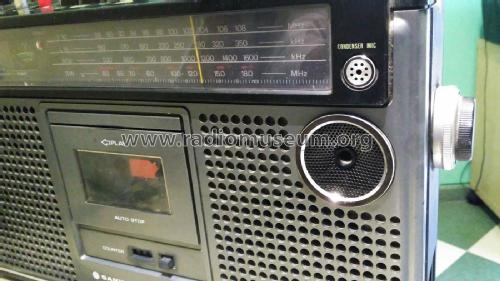

• Model: Cassette Recorder M9980LU - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 418 x 262 x 110 mm / 16.5 x 10.3 x 4.3 inch

• Notes

• ICs: A3301, LA4110, LA4110.

  Das Gerät kann auch über ein externes 9 V - Netzteil betrieben werden.

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
