• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345716

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• 2SC929 2SC930 2SC930 2SC930 2SB303 2SB186 2SB186 2SB186 2SB405 2SB405 2SB186 2SB186 2SC945 2SC537 1S188 1S426 1S1210 DS-18 DS442

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 50/60 Hz, 120; 200; 240 / C: 6 x 1.5 / DC: 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Portable Radio Cassette Recorder M-2110W - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• See also Model M-2110F with FM.

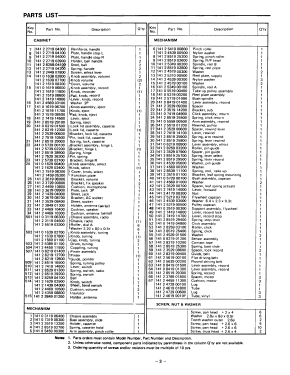

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
