• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 231595

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / 2 x 1.5/ ? Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 0.25 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: M-G34DT - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 84.5 x 120 x 35.5 mm / 3.3 x 4.7 x 1.4 inch

• Notes

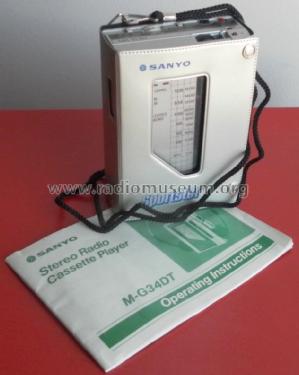

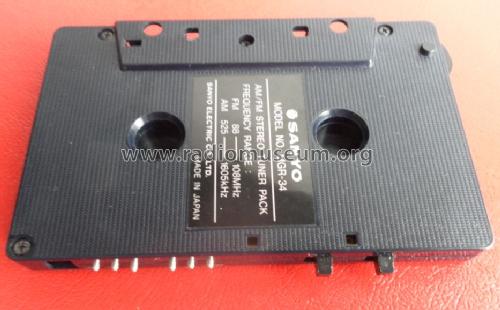

• This Sanyo cassette player includes an AM/FM radio model MGR-34. It also sports DolbyNR and Metal tapes.





• Net weight (2.2 lb = 1 kg)
• 0.250 kg / 0 lb 8.8 oz (0.551 lb)

• Author
• Model page created by Jose Mesquita. See "Data change" for further contributors.
