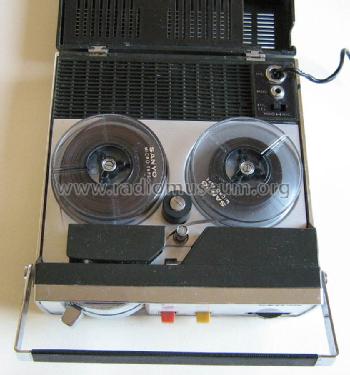

Micro capstan drive MR-225
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1965 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 185110
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Micro capstan drive MR-225 - Sanyo Electric Co. Ltd.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 160 x 155 x 55 mm / 6.3 x 6.1 x 2.2 inch
- Notes
- Micro capstan drive; coil diameter 62 mm; microphone model LM-2, non-removable; lever rewind/stop/play, record and forward buttons; jacks for monitor, power supply (9 V), radio; switch for record radio/mic.
- Net weight (2.2 lb = 1 kg)
- 0.9 kg / 1 lb 15.7 oz (1.982 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Felice Nicolini. See "Data change" for further contributors.
