• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1966/1967 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 92557

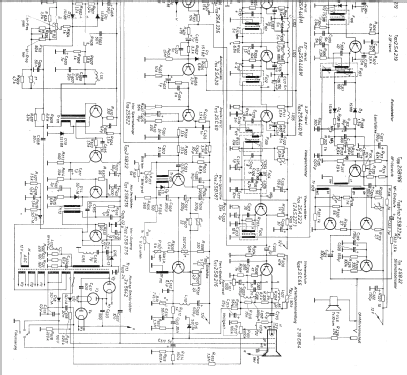

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 230DB4 5642 5642 5642

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org

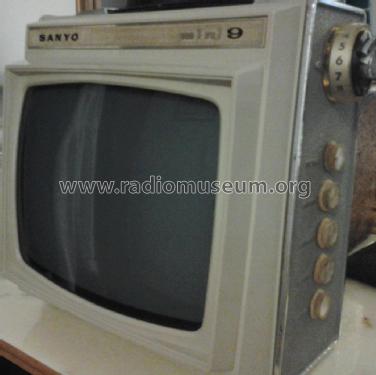

• Model: Mini 9 9-TP20 [26 tr] - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 250 x 240 mm / 11.4 x 9.8 x 9.4 inch

• Notes

• VHF Trommelkanalwähler K2-K12, UHF Durchstimbarer Tuner K21-68 konnte nachgerüstet werden; Bildröhre 23 cm.

  See also model 9-TP20 (U) (27 tr)

• Net weight (2.2 lb = 1 kg)
• 5.1 kg / 11 lb 3.7 oz (11.233 lb)

• Source of data
• - - Data from my own collection

• Mentioned in

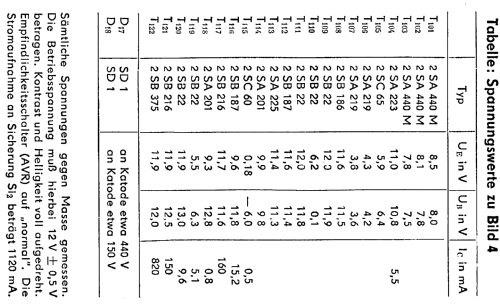

• Radio und Fernsehen (DDR) (Heft 16, 1967, Seiten 751 bis 754, Schaltbild S.752/753)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Jörg Kulbe. See "Data change" for further contributors.
