• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1984

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 213650

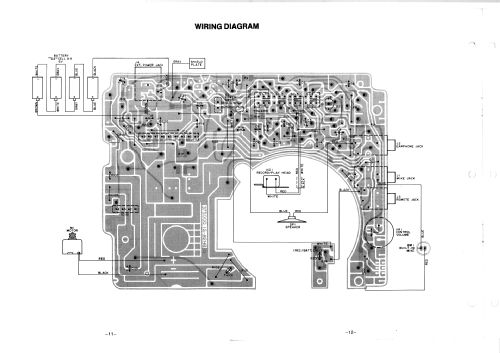

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• 2SC693 LA4140 LA5512

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 4x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Mini Cassette Recorder M1111 - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 150 x 90 x 40 mm / 5.9 x 3.5 x 1.6 inch

• Notes
• Built-in microphone. Earphone connector, microphone input, external speaker 8 Ohms.

• Net weight (2.2 lb = 1 kg)
• 0.370 kg / 0 lb 13 oz (0.815 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
