Otto DC-37N
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1969/1970
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 332697
Mingay's Price Service, 2/70.
- Number of Transistors
- 18
- Semiconductors
- 2SC772 2SC772 2SC772 2SC772 2SC772 2SC772 2SC537 2SC537 2SB303 2SB303 2SB186 2SB186 2SB186 2SB186 2SB474 2SB474 2SB474 2SB474 1S188
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 100; 120; 135; 150; 210; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Otto DC-37N - Sanyo Electric Co. Ltd.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 16.75 x 6.25 x 14.375 inch / 425 x 159 x 365 mm
- Notes
-

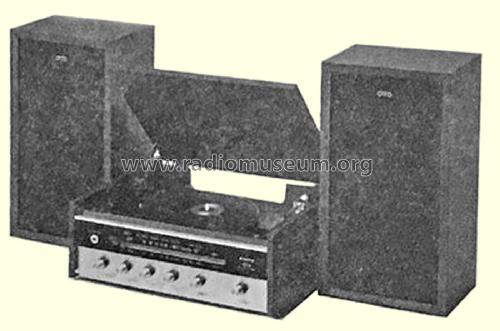

18 Transistor, 13 diodes, 1 FET, 3-piece modular stereo incorporating AM/FM/SW radio tuner, 3-speed turntable, 8 watts per channel output, teak wooden cabinet with separate speaker enclosures. 2 x 8" double cone woofer & 2 x 3" tweeter.
Speaker enclosure dimensions: 9⅝" x 6⅞" x 17¼".
- Price in first year of sale
- 250.00 AUS $
- Mentioned in
- Mingay's Price Service (Feb 1970.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Service Manual.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
