• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 2000 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 240153

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Line / Batteries (any type) / 220/ 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

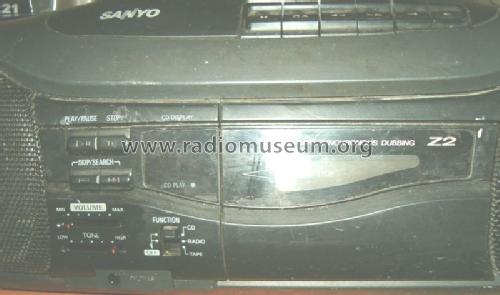

• Model: Portable CD/Stereo Radio MCD-Z2L - Sanyo Electric Co. Ltd.;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 530 x 150 x 200 mm / 20.9 x 5.9 x 7.9 inch

• Notes

• - CD Radio Cassette Recorder

  - CD/TAPE

  - Output Phones

  - Band Tuner: LW, MW, SW and FM

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
