• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1968–1971

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 253524

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• 2SB175 or. 2SB186 2SB175 or. 2SB186 2SB187 2SB187

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Batteries / addl. power jack / D: 4 x 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Portable Phonograph G-1517 - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10.625 x 3 x 6.6875 inch / 270 x 76 x 170 mm

• Notes

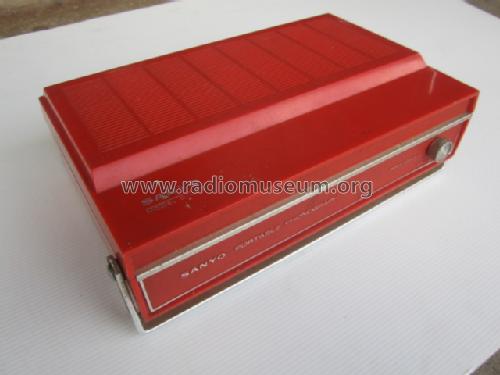

• Sanyo Model G-1517

  A two-speed (33⅓ & 45 rpm) portable record player in attractive red, shockproof polyester cabinet.

  Features: solid state circuitry. Sensitive pick-up with sapphire stylus. Operates from four "D" size batteries or AC using optional adaptor. (MINGAY'S PRICE SERVICE)

• Net weight (2.2 lb = 1 kg)
• 3 lb 3 oz (3.188 lb) / 1.447 kg

• Price in first year of sale
• 36.50 AUS $

• Mentioned in
• Mingay's Price Service (Feb 1969 to Feb 1971.)

• Author
• Model page created by Abu Bakar. See "Data change" for further contributors.
