• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1968–1971

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 332868

• Number of Transistors
• 4

• Semiconductors
• 2SB175 2SB175 2SB187 2SB187

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.3 W (0.5 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

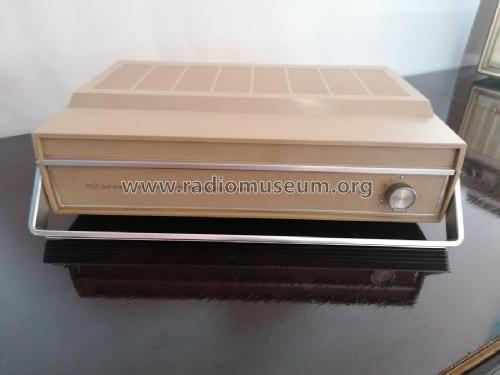

• Model: Portable Phonograph G-1517AD - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 170 x 77 mm / 10.6 x 6.7 x 3 inch

• Notes

• Two-speed record player.

  See also battery only version Model G-1517.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Author
• Model page created by Francisco Martins. See "Data change" for further contributors.
