Portable Radio Cassette Recorder M2563

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 257932

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 120 / 5 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 0.8 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Portable Radio Cassette Recorder M2563 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

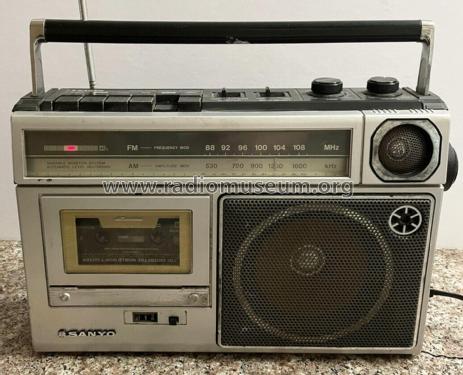

  • Sanyo Portable AM FM Radio Cassette Recorder Model M2563.
    Tuning Range: AM 525 - 1605 kHz, FM 88 - 108 MHz
    Frontloading Cassette Player/Recorder, 200 - 6300 Hz
    Auto Stop Function, Built In Mic
    Telescopic antenna, Carrying Handle
    Power Consumption 7 Watts.

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
