• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351148

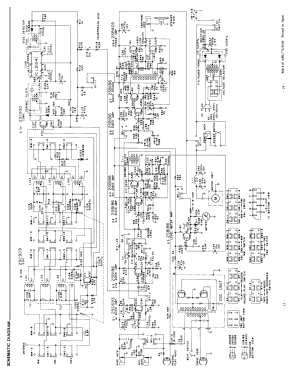

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• 2SC929 2SC930 2SC693 2SB186 2SB186 2SB186 2SB186 2SB186 2SB405 2SB405 2SB186 unknown_tr_PNP unknown_tr_PNP LD1041 1S188 1S426

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 50/60 Hz, 120; 200; 240 / C: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Portable Radio Cassette Recorder M-2503H - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 288 x 211 x 80 mm / 11.3 x 8.3 x 3.1 inch

• Notes

• both unknown_tr_PNP are inside osc. unit

• Net weight (2.2 lb = 1 kg)
• 9 lb 11 oz (9.688 lb) / 4.398 kg

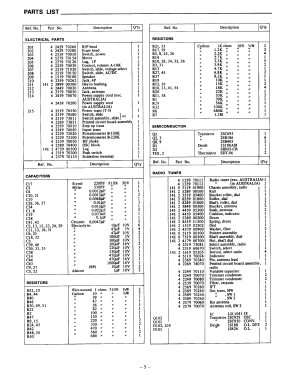

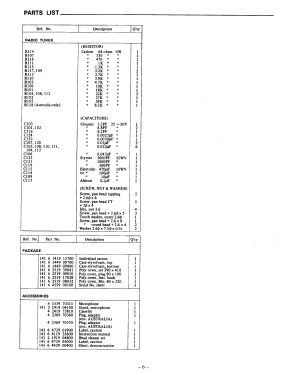

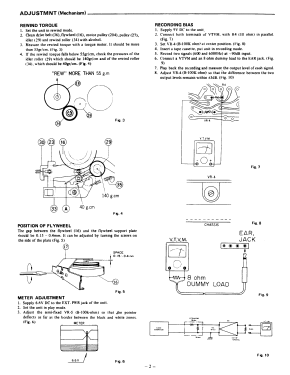

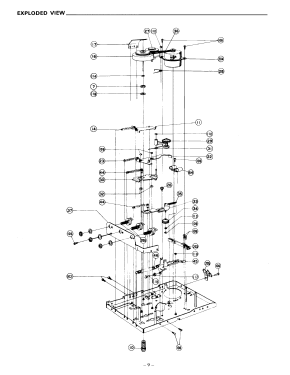

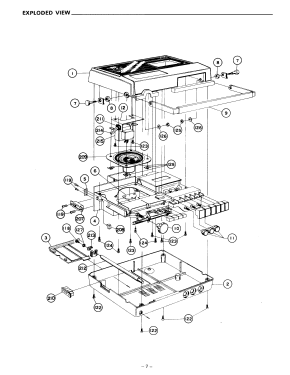

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
