• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1975 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351969

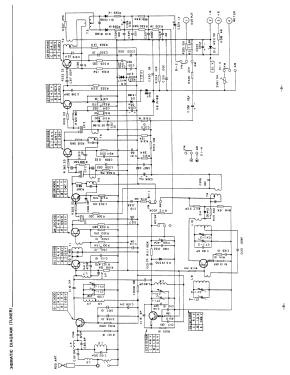

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• 2SC930 2SC668 2SC930 2SC930 2SC930 2SC930 2SC930 2SC930 2SC929 2SC1571 2SC1571 2SC1571 2SC536 2SD400 2SD400 2SC1568 2SC1568 2SD400 BA313 BA313 1S188 1S553 DS131 DS132 DS442 MA26 MV-11 WZ050

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 120; 200; 240 / 9 / D: 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3.65 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Portable Radio Cassette Recorder M-9800F - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 372 x 240 x 108 mm / 14.6 x 9.4 x 4.3 inch

• Notes

• Externally similar to M-9800V but only two bands.

• Net weight (2.2 lb = 1 kg)
• 8 lb 7 oz (8.438 lb) / 3.831 kg

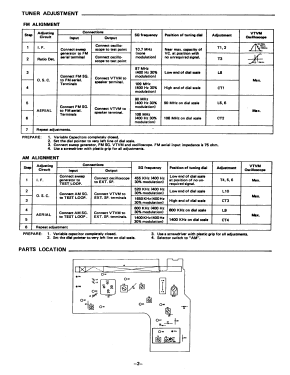

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
