Portable Radio Cassette Recorder MR-4112F

Sanyo España, Eurotrón, Ainsa; Huesca (HU) y Tudela (NA)

Data
Forum
Pictures
Collections

  • Year
  • 1973 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 352294

 Technical Specifications

  • Number of Transistors
  • 12
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage

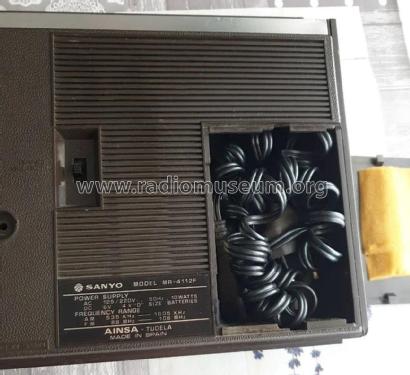

  • Line / Batteries (any type) / 125; 220 / D: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Portable Radio Cassette Recorder MR-4112F - Sanyo España, Eurotrón, Ainsa;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 312 x 180 x 77 mm / 12.3 x 7.1 x 3 inch
  • Notes

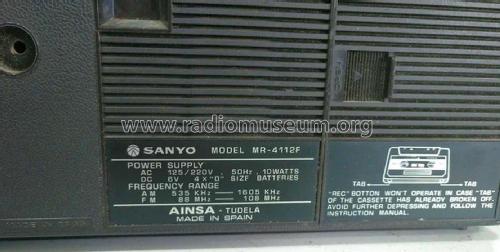

  • Sanyo España, fabricado por Ainsa (Tudela), MR-4112F

    Utiliza pilas tipo D en tanto que el modelo japonés usa pilas tipo C

    Bandas:

    • AM: 530 - 1605 kHz
    • FM: 88 - 108 MHz

    Véase también MR-4112F (Japón)

  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
