AM FM Radio Cassette Recorder M2420F
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1976 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 261179

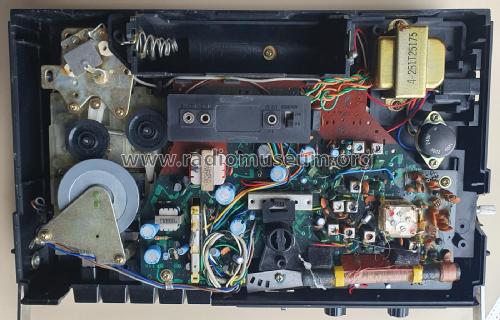

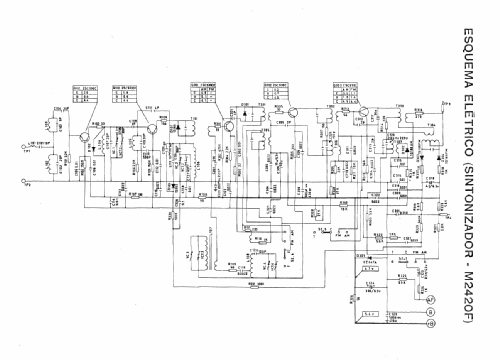

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 120; 200; 240; D: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AM FM Radio Cassette Recorder M2420F - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 316 x 198 x 91 mm / 12.4 x 7.8 x 3.6 inch
- Notes
-
Frequency range:
FM 87.5 - 108 MHz
AM 530 - 1605 kHz
Cassette with auto stop; built in condenser microphone.
Top: 5 function buttons for the recorder, including one for stop-eject, radio AM-FM-off switch, knob for microphone off-tone control, knob for volume, 5-section telescopic antenna 81.5 cm).
Rear: voltage selector (protected), on-off monitor, external speaker socket (8 ohm), microphone and remote control sockets, battery compartment access.
Left side: power socket and tuning knob.
Rigid, movable handle with 90-degree excursion to the back.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
